Baby

Features and Benefits
  • The small, compact, low hold-up volume design makes it ideal for neonatal/pediatric IV therapy and anesthesia drug delivery application.
  • Compatible with gravity and pump sets.
  • Hyper-phobic air vents are compatible with lipids, alcohol and oncology drugs.
  • 0.2μm filter is retentive of B. diminuta at 10^7 CFU/cm2 EFA as a sterilizing grade filter per ASTM F838 test methods. 1.2μm filter is retentive of candida albicans at 10^7 CFU/cm2 EFA. 5.0μm filter removes 5μm latex particles at an efficiency greater than 90%.
  • Hyper-phobic air vents are compatible with lipids, alcohol and oncology drugs.
  • Standard or customized connector fit a variety of tubing configurations.
  • Custom printing options on filter housing for better product identification and brand identification.

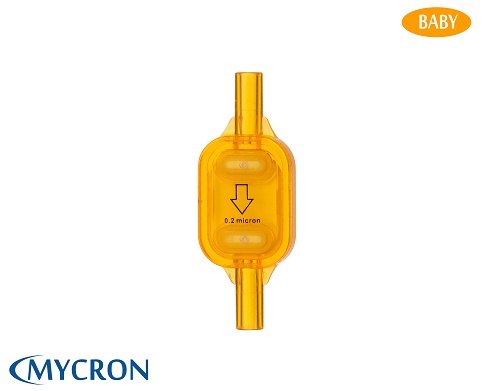

  • Amber filter housing available for photosentive drugs.
neonatal infusion filter, PCA filter, IV-Baby

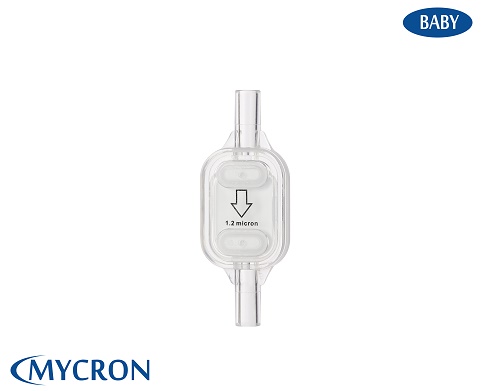

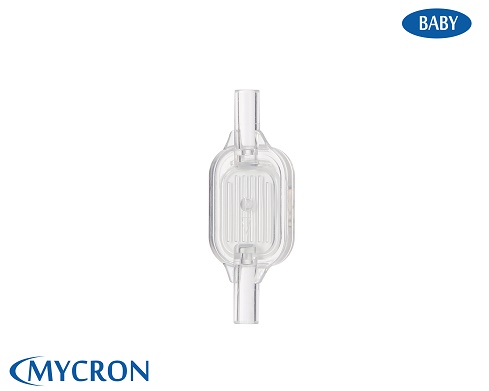

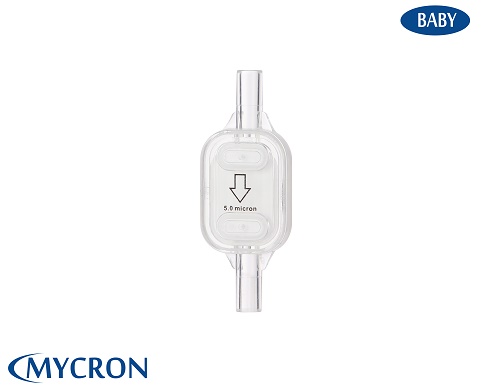

IV-baby filters are featured with single layer design, it’s integrated with 1 fluids membrane and 2 air vent membranes. The small, compact, low hold-up volume design makes it ideal for neonatal IV therapy and anesthesia drug delivery application.



Neonate and pediatric IV therapy

Anesthesia drug delivery

Aqueous IV solutions
TPN and lipids solutions

Chemo therapy solutions

Portable and PCA Pumps
Specifications

Biological Safety

Materials of construction comply with USP Class VI

Biological Reactivity Tests In Vivo<88>  and ISO10993.

Dimensions

Length:38.4mm (21.6mm filter body)      Weight: 1.2g

Width: 15mm                                                Thickness: 4.1mm

Materials of Construction

Filter Media: high flow hydrophilic PES

Air Vent: hydrophobic PTFE 0.02μm

Housing: Clear medical grade ABS

Minimum Water Flow Rate

0.2μm: ≥ 4mL/min at 0.1bar (1m head pressure)

1.2μm: ≥ 30 mL/min at 0.1bar (1m head pressure)

5.0μm: ≥ 55 mL/min at 0.1bar (1m head pressure)

Effective Filtration Area (EFA)

1.5 cm2 PES fluids membrane

0.25 cm2 PTFE air vent membrane

Inlet/Outlet Connections

Inlet: TUBE I.D. 2.1 / 2.3 / 2.4 / 2.5 / 2.8 / 2.9 / 3.0mm

Outlet: TUBE I.D. 2.1 / 2.3 / 2.4 / 2.5 / 2.8 / 2.9 / 3.0mm

Maximum Operating Pressure

3.5 bar

Sterilization Compatibility

EtO, gamma irradiation (25kGy)

Ordering Information
  Example Product Code: IVB 6 12

Product Code

Pore Size

Descriptions

   Tube Connector Code

IVB    02

0.2μm

2 Vents, Clear Housing

  1L  I.D 1.90~2.10mm x O.D. 4.3mm

IVB    02A

0.2μm

2 Vents, Amber Housing

  3    I.D 2.13~2.28mm x O.D. 4.3mm

IVB    12

1.2μm

2 Vents, Clear Housing

  4    I.D 2.23~2.38mm x O.D. 4.3mm

IVB    12A

1.2μm

2 Vents, Amber Housing

  5    I.D 2.38~2.53mm x O.D. 4.3mm

IVB    50

5.0um

2 Vents, Clear Housing

  6    I.D 2.63~2.78mm x O.D. 4.3mm

IVB    50A

5.0um

2 Vents, Amber Housing

  6X  I.D 2.65~2.91mm x O.D. 4.3mm
Baby filter are available with no vent.*    7    I.D 2.85~2.99mm x O.D. 4.3mm
