Micro (auto-priming)

Features and Benefits
  • The small, compact, low hold-up volume design.
  • Compatible with gravity and pump sets.
  • Hyper-phobic air vents are compatible with lipids, alcohol and oncology drugs.
  • 0.2μm filter is retentive of B. diminuta at 10^7 CFU/cm2 EFA as a sterilizing grade filter per ASTM F838 test methods. 1.2μm filter is retentive of candida albicans at 10^7 CFU/ cm2 EFA. 5.0μm filter removes 5μm latex particles at an efficiency greater than 90%.
  • Custom printing options on filter housing for better product identification and brand identification.
  • Amber filter housing available for photosentive drugs.
kids pediatric infusion filter, 5um IV filter, IV-Micro, auto priming

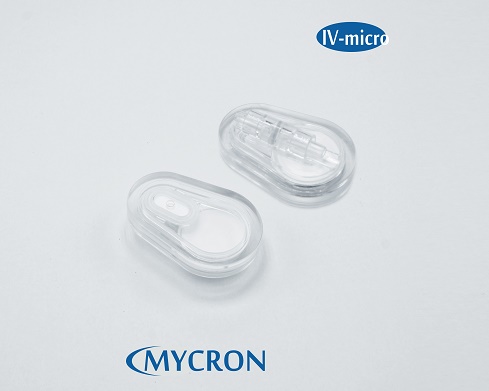

IV-micro filters are featured with single layer design, it’s integrated with 1 fluids membrane and 1 air vent membrane. The small, compact, low hold-up volume design makes it ideal for pediatric IV therapy and anes-thesia drug delivery application.


Pediatric IV therapy
TPN and lipids solutions
Chemo therapy solutions
Antibiotic therapy solutions
Apheresis solutions
Portable and PCA pumps
Specifications

Biological Safety

Materials of construction comply with USP Class VI

Biological Reactivity Tests In Vivo<88>  and ISO10993.

Dimensions

Length: 32mm*27mm     Thickness: 6.5mm

Width: 12mm (7mm filter body)      Weight: 3.6g

Materials of Construction

Filter Media: high flow hydrophilic PES

Air Vent: hydrophobic PTFE 0.02μm

Housing: Clear medical grade ABS

Minimum Water Flow Rate

0.2μm: ≥ 10 mL/min at 0.1bar (1m head pressure)

1.2μm: ≥ 50 mL/min at 0.1bar (1m head pressure)

5.0μm: ≥ 100 mL/min at 0.1bar (1m head pressure)

Effective Filtration Area (EFA)

2.0 cm2 PES fluids membrane

0.4 cm2 PTFE air vent membrane

Inlet/Outlet Connections

Inlet: TUBE I.D. 2.0mm x O.D. 3.2~3.4mm

Outlet: TUBE I.D. 2.0mm x O.D. 3.2~3.4mm

Maximum Operating Pressure

3.5 bar

Sterilization Compatibility

EtO, gamma irradiation (25kGy)

Ordering Information

Product Code

Pore Size

Descriptions

IVi02

0.2μm

Standard Tube Connections, Clear Housing

IVi02A

0.2μm

Standard Tube Connections, Amber Housing

IVi12

1.2μm

Standard Tube Connections, Clear Housing

IVi12A

1.2μm

Standard Tube Connections, Amber Housing

IVi50

5.0um

Standard Tube Connections, Clear Housing

IVi50A

5.0um

Standard Tube Connections, Amber Housing
