AirSTOP Drip Chamber

Features and Benefits
  • High protection against particles. The integrated 15 μm fluids filter removes 5μm latex particles at an efficiency greater than 90%.
  • Prevent air passing through it when the infusion botile runs empty.
  • The drip chamber kit can be integrated to customer existing products easily. Compatible with gravity sets.
airstop drip chamber, air flow stop drip chamber, air flow stop filter

High flow Airguard drip chambers offer quick integration to customer infusion sets, enables the added value of autostop, air bubble elimination, and par ticle retention features.




Specifications

Air Stop Functionality

Max. 150cm Water Column Height

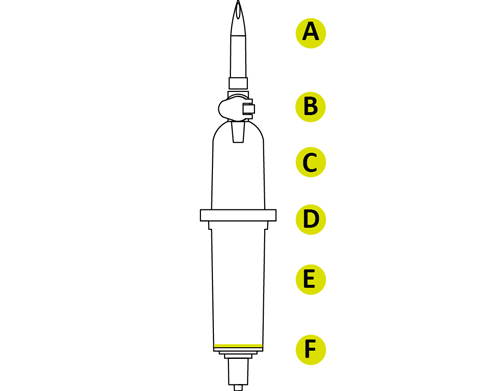

A. SPIKE

Transparent PC

B. AIR VENT

PTFE 1.2/3.0μm

C. UPPER CHAMBER

Transparent PC

D. SEALING RING

ABS, Color Optional*

E. LOWER CHAMBER

TPE

F.  AIR STOP FILTER

15μm

Filtration Efficiency

＞90%（ISO 8536-4 A.5）

Flow Rate (Nacl 0.9%)

＞1000ml/10min at 1m head pressure

Sterilization Compatibility

EtO, gamma irradiation (25kGy)


Ordering Information

Product Code

Pore Size

Descriptions

AGS-GC

15μm

Gravity, Clear
AGS-GA 15μm Gravity, Amber
AGS-PC 15μm

Pump, Clear
AGS-PA 15μm Pump, Amber
